650 Series

MASTERETCH 650 SERIES

Masteretch 650 Series

The Model 650 is a powerhouse etching machine ideal for high volume etching and chemical milling operations. The 650 is an ideal machine for customers for whom etching is their main business

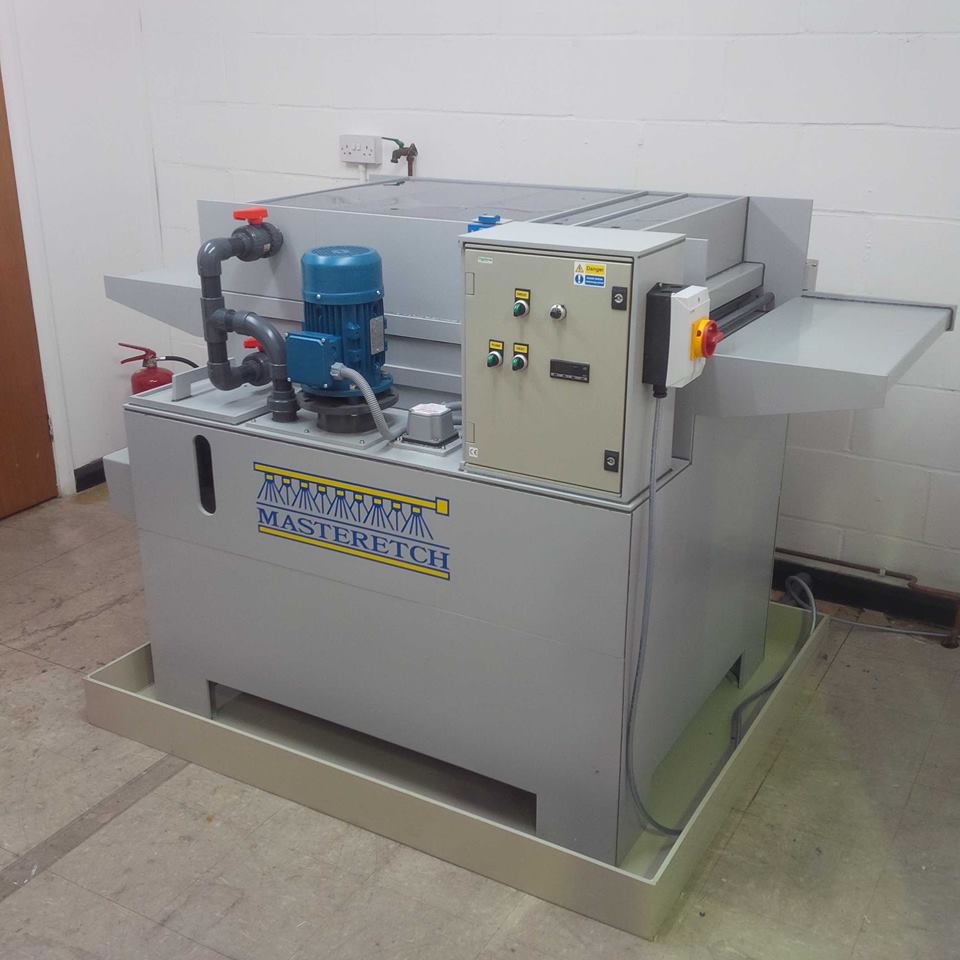

750 masteretch etching machine

Masteretch Model 650 Etch/Rinse

 MASTERETCH 650 ETCH/RINSE

Conveyor width                                                           650mm
Conveyor control                                                        DC shunt motor with digital readout speed control
Conveyor drive                                                            1 to 1 polypropylene drive gears
Pump                                                                             2.2kw glandless submersible unit – titanium shaft
Filter                                                                              Lift out filter on input side of pump
Heating                                                                         3kw titanium element
Temperature control                                                   Digital readout electronic thermostat
Spray banks                                                                 5 top 5 bottom spray bars, shut off valves
Spray jets                                                                      Quick release fan jets
Carryover gap                                                              4 sets squeegee rollers to prevent solution carryover
Rinse                                                                              1 Top and bottom spray bars
Dimensions                                                                   Length 1300mm x Width 1041mm x Height on stand 1350mm
Load/unload trays                                                      2 x 375mm trays
Services                                                                         3 phase +N 20amp, ½” water in, 1 ½” drain
Sump capacity                                                             200ltrs

Safety
☑ Low liquid level cut outs
☑ Fume extraction outlet
☑ Chamber access door interlocks

SPECIFICATIONS

Conveyor width:
650mm
Conveyor control:
DC shunt motor with digital readout speed control
Conveyor drive:
1 to 1 polypropylene drive gears
Pump:
2.2kw glandless submersible unit – titanium shaft
Filter:
Lift out filter on input side of pump
Heating:
3kw titanium element
Temperature control:
Digital readout electronic thermostat
Spray banks:
5 top 5 bottom spray bars, shut off valves
Spray jets:
Quick release fan jets
Carryover gap:
4 sets squeegee rollers to prevent solution carryover
Rinse:
Top and bottom spray bars

Dimensions:
Length 1300mm x Width 1041mm x Height on stand 1350mm
Load/unload trays 2 x 375mm trays

Services:
3 phase +N 20amp, ½” water in, 1 ½” drain
Sump capacity 200ltrs

Safety:
☑ Low liquid level cut outs
☑ Fume extraction outlet
☑ Chamber access door interlocks
