MASTERETCH MODEL 360

Masteretch Model 360

Our entry level etching machine, the 360 is a compact but powerful etching machine that can easily be installed and operated in sign shops, research laboratories, universities and fabrication labs.

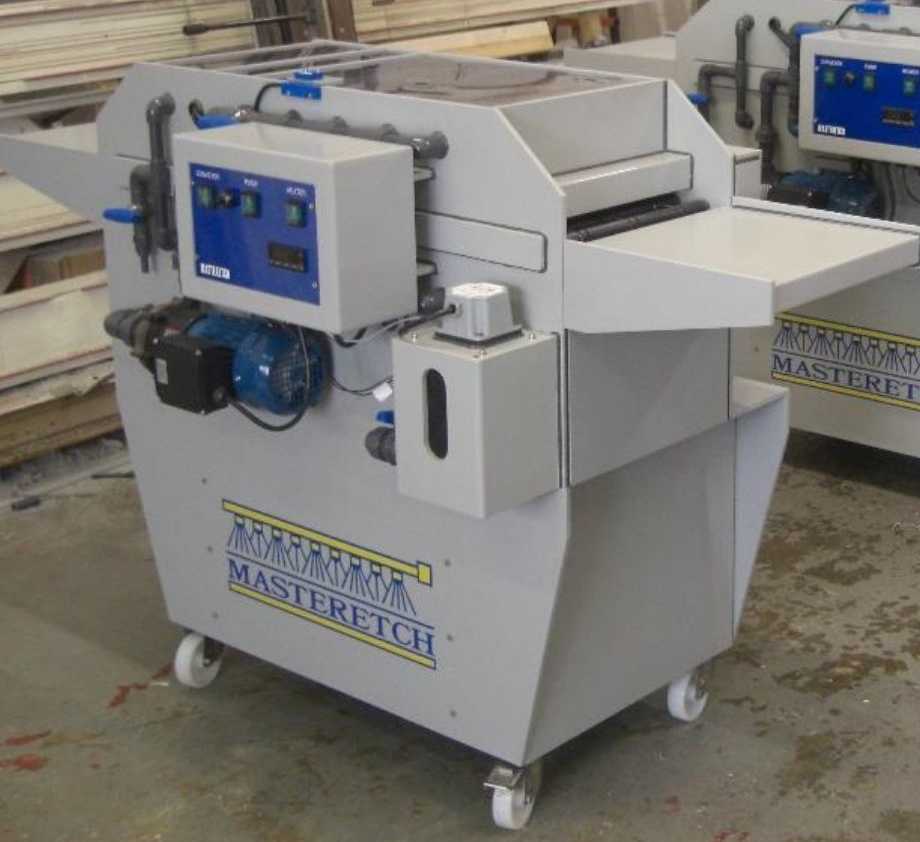

Masteretch Model 360 Etch/Rinse

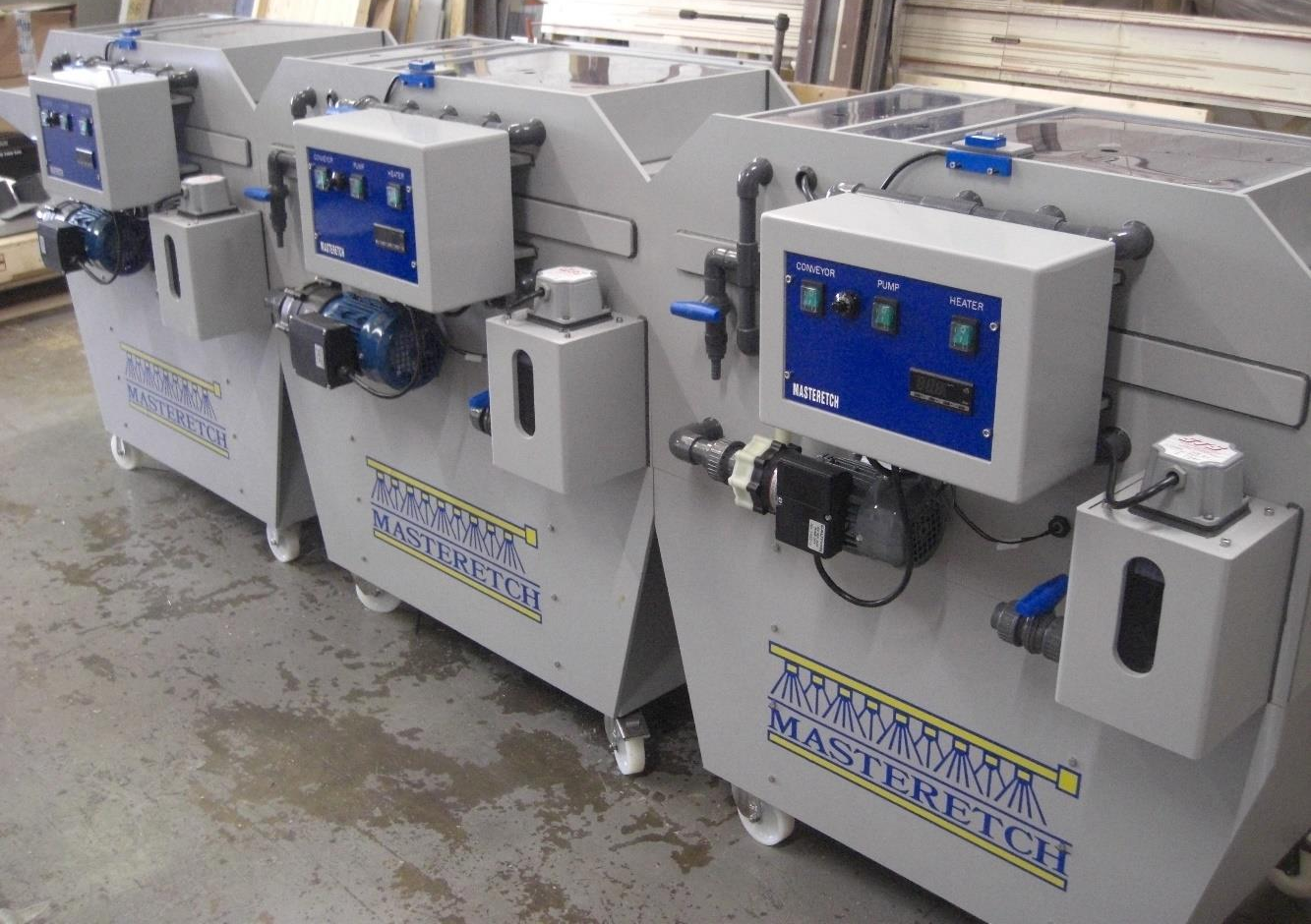

750 masteretch etching machine

 MASTERETCH MODEL 360 ETCH/RINSE

Conveyor width                                                                 360mm (14”)
Conveyor control                                                              DC shunt motor with digital readout speed control
Conveyor drive                                                                  1 to 1 polypropylene drive gears
Pump                                                                                   High torque magnetic drive unit
Filter                                                                                    Lift out filter on input side of pump
Heating                                                                               2kw titanium element
Temperature control                                                         Digital readout electronic thermostat
Spray banks                                                                       4 top 4 bottom spray bars, with shut off valves
Spray jets                                                                           Quick release fan jets
Carryover gap                                                                    5 sets squeegee rollers to prevent solution carryover
Rinse section                                                                      Top and bottom spray bars
Base unit                                                                             Free standing base unit
Load unload trays                                                             2 x clip on trays
Dimensions                                                                         Length 42” + clip on trays 2 x 14” Width 25” x height 48”
Services                                                                               Single phase, ½” water in, 1 ½” drain
Sump capacity                                                                   75ltrs

Safety
☑ Low liquid level cut out
☑ Chamber access magnetic interlock
☑ Fume extraction outlet

SPECIFICATIONS

Conveyor width:
360mm (14”)
Conveyor control:
DC shunt motor with digital readout speed control
Conveyor drive:
1 to 1 polypropylene drive gears
Pump:
High torque magnetic drive unit
Filter:
Lift out filter on input side of pump
Heating:
2kw titanium element
Temperature control:
Digital readout electronic thermostat
Spray banks:
4 top 4 bottom spray bars, with shut off valves
Spray jets:
Quick release fan jets
Carryover gap:
5 sets squeegee rollers to prevent solution carryover
Rinse section:
Top and bottom spray bars
Base unit:
Free standing base unit
Load unload trays:
2 x clip on trays

Dimensions:
Length 42” + clip on trays 2 x 14”
Width 25” x height 48”

Services:
Single phase, ½” water in, 1 ½” drain
Sump capacity: 75ltrs

Safety
☑ Low liquid level cut out
☑ Chamber access magnetic interlock
☑ Fume extraction outlet
