MASTERETCH MODEL 635

Masteretch 635 Model

Our most popular model with over 400 installations worldwide, the 635 is an ideal machine for companies looking to bring their etching work in-house. Available in Developing, etching and stripping configurations.

Masteretch Model 635 Etch/Rinse

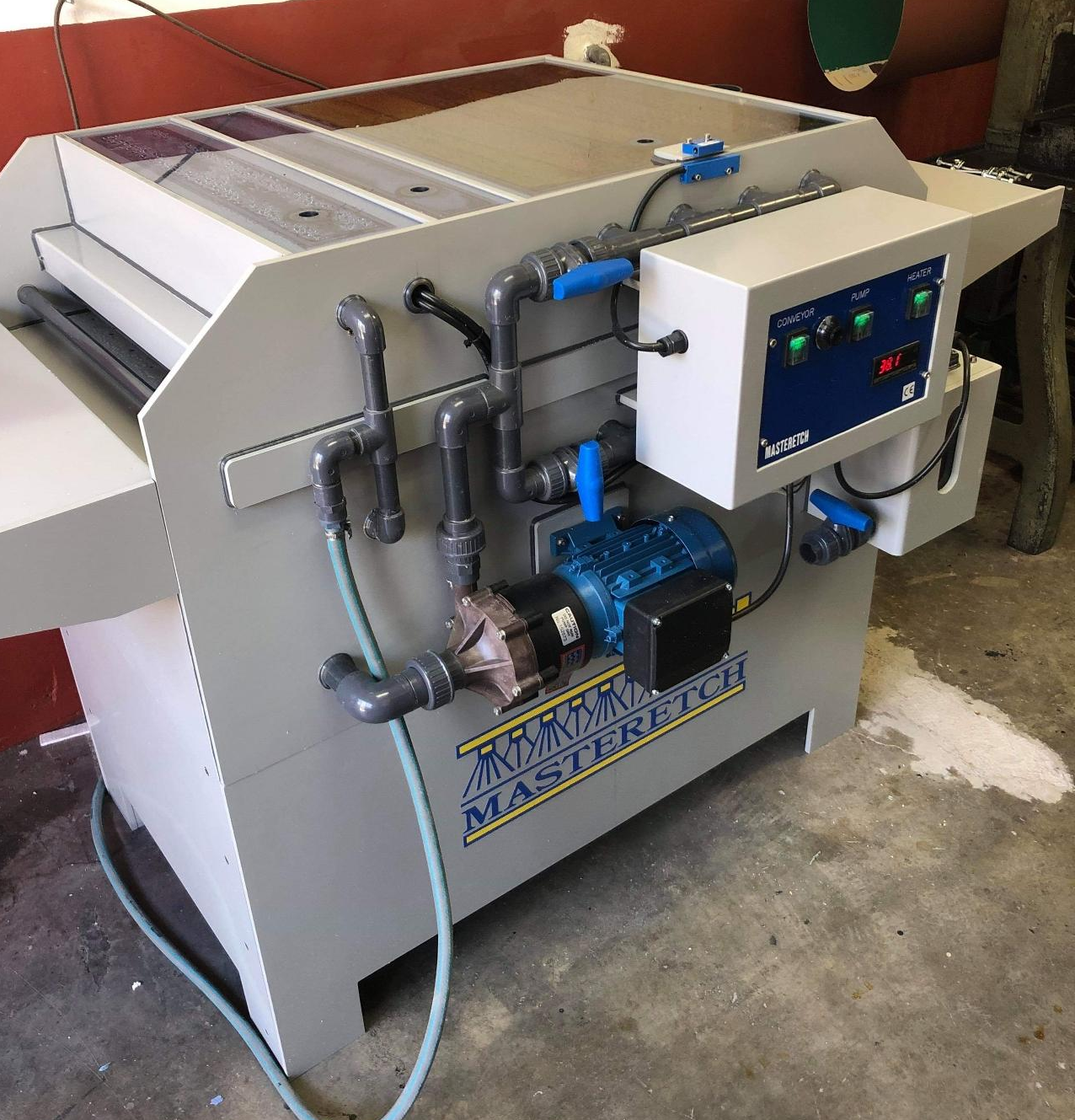

750 masteretch etching machine

 MASTERETCH 635 ETCH/RINSE

Conveyor width                                                                635mm
Conveyor control                                                            DC shunt motor with digital readout speed control
Conveyor drive                                                                 1 to 1 polypropylene drive gears
Pump                                                                                 High torque magnetic drive unit
Filter                                                                                  Lift out filter on input side of pump
Heater                                                                               2kw titanium element
Temperature control                                                       Digital readout electronic thermostat
Spray banks                                                                      4 top 4 bottom spray bars, with shut off valves
Spray jets                                                                          Quick release fan jets
Carryover gap                                                                   5 sets squeegee rollers to prevent solution carryover
Rinse section                                                                     Top and bottom spray bars
Base unit                                                                            Castored base unit
Load unload trays                                                            2 x clip on trays (305mm each)
Dimensions                                                                        Length 1100mm x Width 900mm x height 1100mm
Services                                                                              Single phase, ½” water in, 1 ½” drain
Sump capacity                                                                  125ltrs

Safety
☑ Low liquid level cut out
☑ Chamber access magnetic interlock
☑ Fume extraction outlet
SPECIFICATIONS

Conveyor width:
635mm
Conveyor control:
DC shunt motor with digital readout speed control
Conveyor drive:
1 to 1 polypropylene drive gears
Pump:
High torque magnetic drive unit
Filter:
Lift out filter on input side of pump
Heater:
2kw titanium element
Temperature control:
Digital readout electronic thermostat
Spray banks:
4 top 4 bottom spray bars, with shut off valves
Spray jets:
Quick release fan jets
Carryover gap:
5 sets squeegee rollers to prevent solution carryover
Rinse section:
Top and bottom spray bars
Base unit:
Castored base unit
Load unload trays:
2 x clip on trays

Dimensions:
Length 1100mm + clip on trays 2 x 305mm Width 900mm x height 1100mm

Services:
Single phase, ½” water in, 1 ½” drain
Sump capacity 125ltrs

Safety:
☑ Low liquid level cut out
☑ Chamber access magnetic interlock
☑ Fume extraction outlet
